AluSpace Internal Aluminium Systems

SMART INTERNAL SCREENING AND DOORS

Smart Logo

AluSpace gives architects and interior designers the opportunity to create space and light in any internal environment

Used to divide or delineate both residential and commercial spaces of any shape and size, while at the same time providing an effective acoustic barrier, this flexible and versatile system provides almost limitless design possibilities.

A choice of hinged single and double doors, as well as pivot and sliding options are available to accompany the fixed glazed screen.  With a huge range of colours and design options to choose from the system can be used to elegantly partition living or working space of any size or shape.

AluSpace is the perfect accompaniment to our Heritage Windows and Heritage Door systems

The Range Includes

Aluspace fixed screens

Fixed Screens

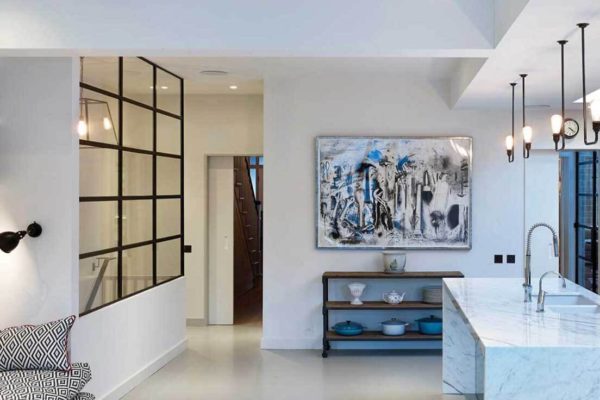

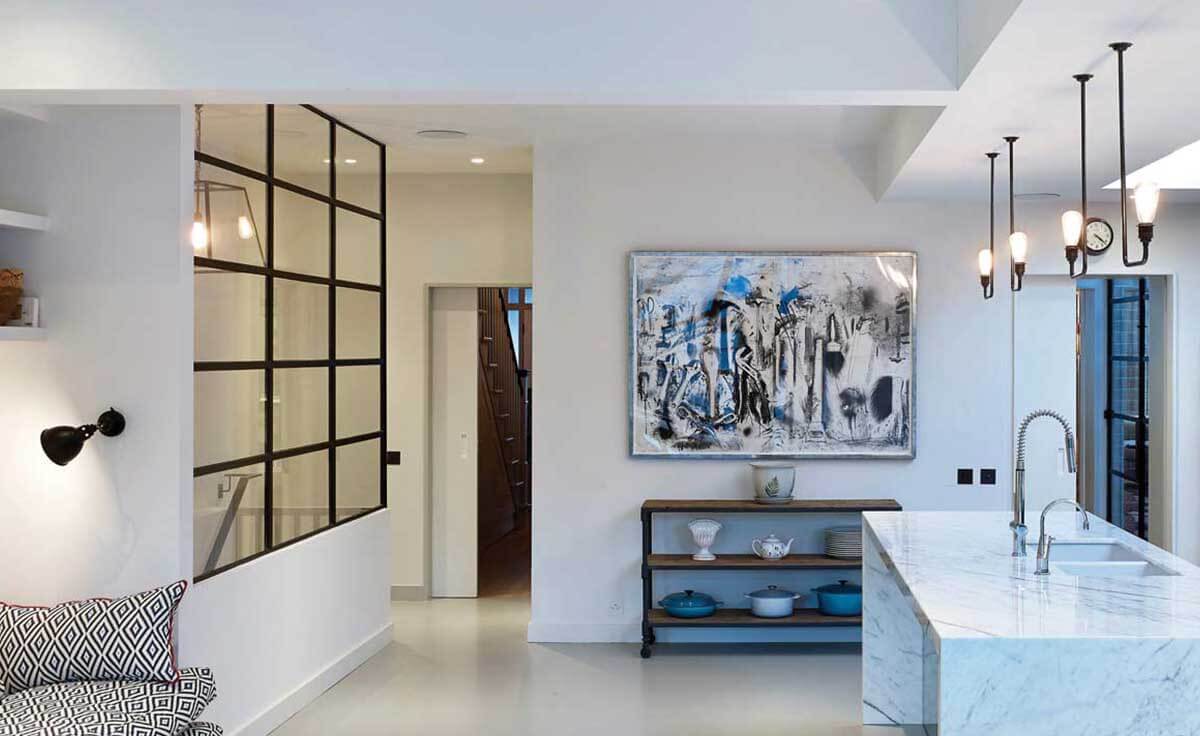

AluSpace fixed sceens give architects and interior designers the opportunity to elegantly partition living or working spaces.

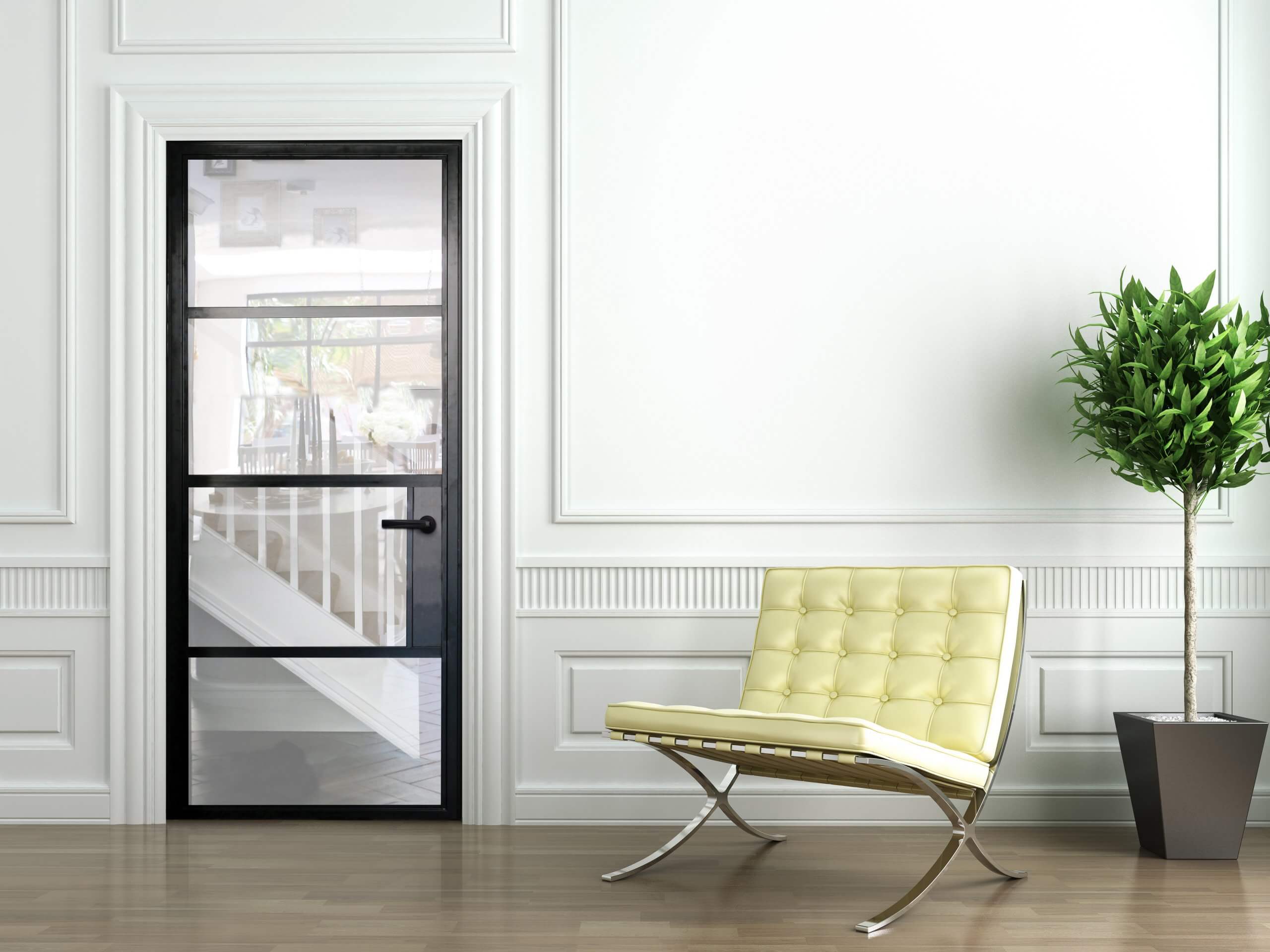

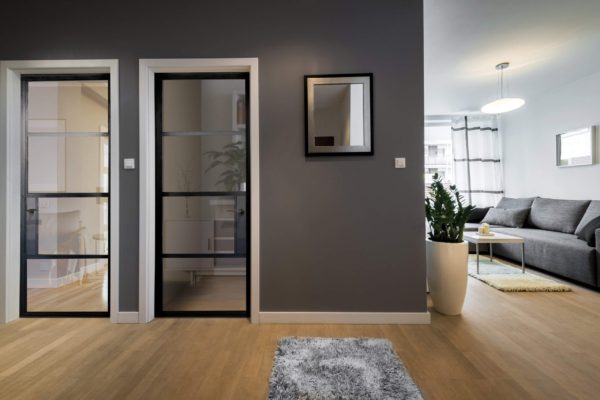

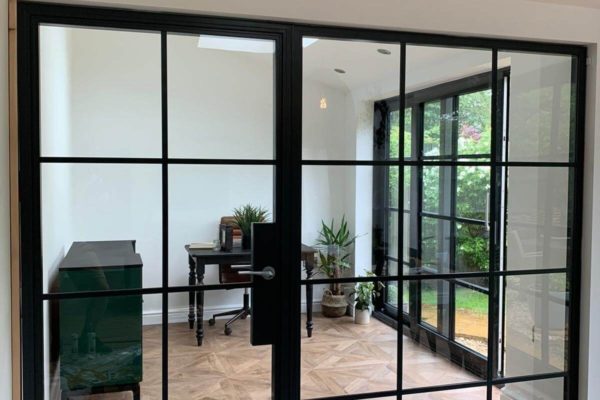

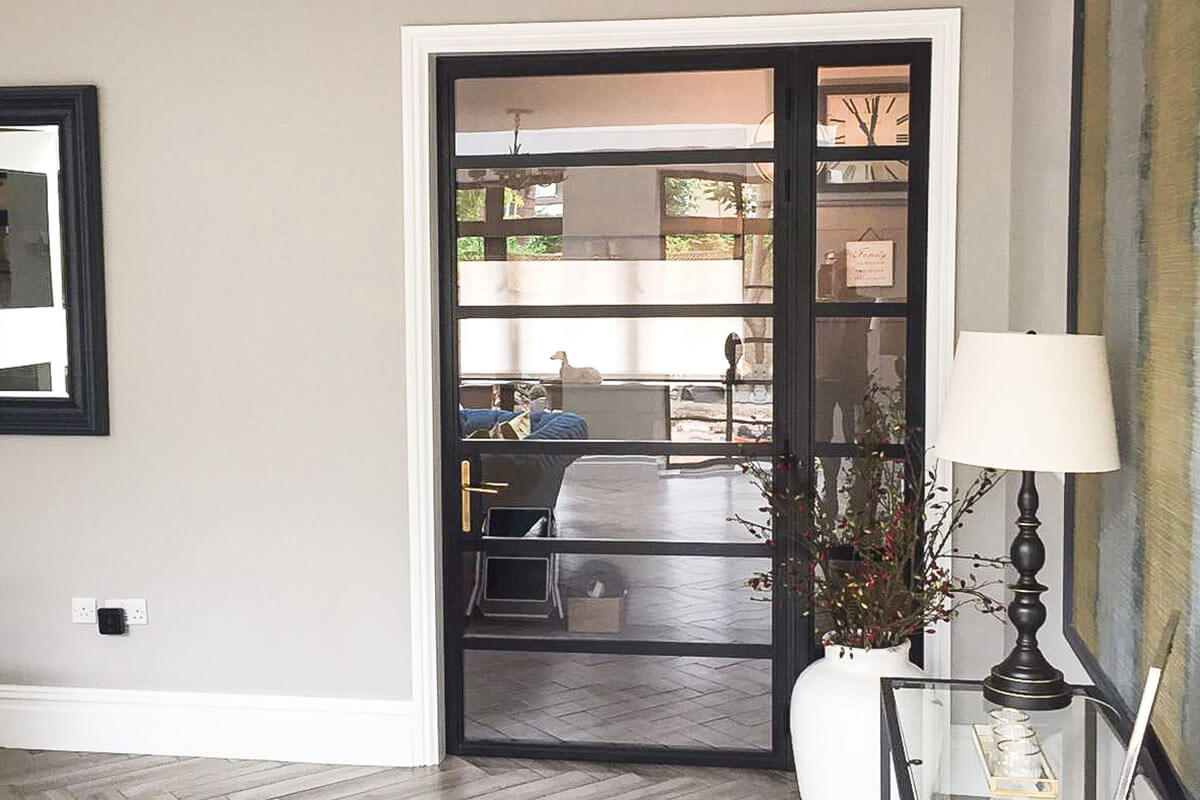

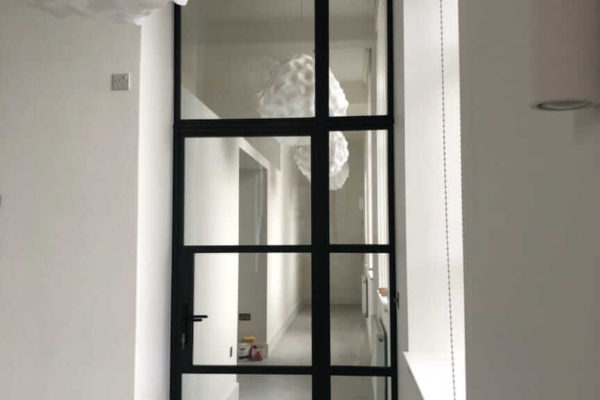

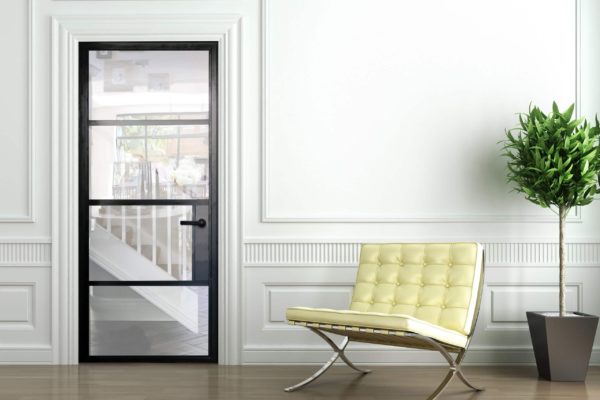

Hinged Doors

With a range of width, glazing, hinge and furniture options, our doors can be configured to suit any design theme, from traditional to minimalist and contemporary to industrial.

Aluspace hinged doors
Aluspace pivot doors

Pivot Doors

Our pivot screen options provides the flexibility to instantly change the way the internal space is configured. Available up to 2 metres wide and with standard or soft close options.

Sliding Doors

Sliding doors provide the option to close or partially open the internal screen, with a choice of a contemporary or vintage rail options to echo the overall design.

Aluspace sliding doors
Aluspace office partioning solutions

Flexible Office Partioning

Our pivot screen options provides the flexibility to instantly change the way the internal space is configured. Available up to 2 metres wide and with standard or soft close options.

Wide range of options for architects and designers

With a range of width, glazing, hinge and furniture options, our doors can be configured to suit any design theme, from traditional to minimalist and contemporary to industrial.



Sliding Doors

Aluspace sliding doors diagram title=

Head Detail

Sliding door head view title=

Sash Detail

Sash detail title=

Threshold Detail

Sliding door threshold title=

Hinged Doors

Aluspace sliding doors diagram title=

Head Detail

Sliding door head view title=

Sash Detail

Sash detail title=

Threshold Detail

Sliding door threshold title=

Pivot Doors

Aluspace sliding doors diagram title=

Head Detail

Sliding door head view title=

Sash Detail

Sash detail title=

Threshold Detail

Sliding door threshold title=

Features & Benefits - Interior Single and Double Doors

Powder coated solid chambered aluminium extrusion with no thermal break

All Aluco interior doors and screens are extruded from solid aluminium extrusion with no thermal break to provide strength, rigidity. Powder coat finish to negate the need for on-going maintenance.

Deep bottom rail

One piece 150mm high deep bottom rail. Suites perfectly in frame and sash negating need for separate infill panel.

Flush 150mm wide lock body

The lock-body housing is 150mm wide with Flush design to give a traditional appearance and enhance lock housing feature.

4mm toughened glass as standard

4mm clear toughened glass as standard with ability to choose laminate, all finished with square shaped bead. Option to have Satinova or Reeded obscure glass designs. Doors and screens can have single or multiple glass types in each product.

Slim 37mm transom

Ultra Slim 37mm transom, provides strength whilst maximising natural light and glass area. 37mm Astragal Bar to match sightlines in any side-panels.

Minimum 4 No slim knuckle hinges

Minimum number of 4 slim knuckle hinges, always traditionally fitted with 2 hinges at the top for greater strength.

All corner joints glued and crimped

All corner joints are glued, double cleated with chevron fitted before being crimped to produce a strong aligned corner joint.

Aluco interior single double sliding doors
Cortizo product features icon

Powder coated solid chambered aluminium extrusion with no thermal break

All Aluco interior doors and screens are extruded from solid aluminium extrusion with no thermal break to provide strength, rigidity. Powder coat finish to negate the need for on-going maintenance.

Cortizo product features icon

Deep bottom rail

One piece 150mm high deep bottom rail. Suites perfectly in frame and sash negating need for separate infill panel.

Cortizo product features icon

Flush 150mm wide lock body

The lock-body housing is 150mm wide with Flush design to give a traditional appearance and enhance lock housing feature.

Cortizo product features icon

4mm toughened glass as standard

4mm clear toughened glass as standard with ability to choose laminate, all finished with square shaped bead. Option to have Satinova or Reeded obscure glass designs. Doors and screens can have single or multiple glass types in each product.

Cortizo product features icon

Slim 37mm transom

Ultra Slim 37mm transom, provides strength whilst maximising natural light and glass area. 37mm Astragal Bar to match sightlines in any side-panels.

Cortizo product features icon

Minimum 4 No slim knuckle hinges

Minimum number of 4 slim knuckle hinges, always traditionally fitted with 2 hinges at the top for greater strength.

Cortizo product features icon

All corner joints glued and crimped

All corner joints are glued, double cleated with chevron fitted before being crimped to produce a strong aligned corner joint.

Features & Benefits - Interior Sliding Doors

One piece head track

One piece head track with concealed gearing and soft close function.

Powder coated solid chambered aluminium extrusion with no thermal break

All Aluco interior doors and screens are extruded from solid aluminium extrusion with no thermal break to provide strength, rigidity. Powder coat finish to negate the need for on-going maintenance.

Slim 37mm transom

Ultra Slim 37mm transom, provides strength whilst maximising natural light and glass area. 37mm Astragal Bar to match sightlines in any side-panels.

Deep bottom rail

One piece 150mm high deep bottom rail. Suites perfectly in frame and sash negating need for separate infill panel.

Flush 150mm wide lock body

The lock-body housing is 150mm wide with Flush design to give a traditional appearance and enhance lock housing feature.

Flush recessed handle range

Handle range includes flush recessed for easy operation. Available in a range of finishes.

20mm Astragal Bar

20mm Astragal Bar allowing a range of styles to be incorporated into your doors.

4mm toughened glass as standard

4mm clear toughened glass as standard with ability to choose laminate, all finished with square shaped bead. Option to have Satinova or Reeded obscure glass designs. Doors and screens can have single or multiple glass types in each product.

Aluco interior sliding doors
Cortizo product features icon

One piece head track

One piece head track with concealed gearing and soft close function.

Cortizo product features icon

Powder coated solid chambered aluminium extrusion with no thermal break

All Aluco interior doors and screens are extruded from solid aluminium extrusion with no thermal break to provide strength, rigidity. Powder coat finish to negate the need for on-going maintenance.

Cortizo product features icon

Slim 37mm transom

Ultra Slim 37mm transom, provides strength whilst maximising natural light and glass area. 37mm Astragal Bar to match sightlines in any side-panels.

Cortizo product features icon

Deep bottom rail

One piece 150mm high deep bottom rail. Suites perfectly in frame and sash negating need for separate infill panel.

Cortizo product features icon

Flush 150mm wide lock body

The lock-body housing is 150mm wide with Flush design to give a traditional appearance and enhance lock housing feature.

Cortizo product features icon

Flush recessed handle range

Handle range includes flush recessed for easy operation. Available in a range of finishes.

Cortizo product features icon

20mm Astragal Bar

20mm Astragal Bar allowing a range of styles to be incorporated into your doors.

Cortizo product features icon

4mm toughened glass as standard

4mm clear toughened glass as standard with ability to choose laminate, all finished with square shaped bead. Option to have Satinova or Reeded obscure glass designs. Doors and screens can have single or multiple glass types in each product.

Design Solutions

Fixed Screens

Fixed screen 80 title=

Single Doors

Single door 80 title=

Double Doors

Double door 80 title=

Pivot Doors

Pivot door 80 title=

Sliding Doors

Sliding door 80 title=

Sliding Double Doors

Sliding double door 80 title=

Offset Single Sliding Doors

Offset single sliding doo 80 title=

Offset Double Sliding Doors

Double door 80 title=

AluSpace Product Specifications

hinged doors

Hinged Door Sash design limitations

Maximum Width (MM) 900

Minimum Width (MM) 400

Maximum Height (MM) 2200

Maximum Weight (KG) 60

Door Configuration Single or Double

Glazing (MM) 6, 8 or 18

Colour/Finish Single Colour

pivot doors

Pivot Door Sash design limitations

Maximum Width (MM) 900

Minimum Width (MM) 400

Maximum Height (MM) 2200

Maximum Weight (KG) 100

Door Configuration Single

Glazing (MM) 6, 8 or 18

Colour/Finish Single Colour

sliding doors

Sliding Door Sash design limitations

Maximum Width (MM) 1200

Minimum Width (MM) 400

Maximum Height (MM) 2500

Maximum Weight (KG) 100 (With ACINT313 Rollers)

Door Configuration Single

Glazing (MM) 6, 8 or 18

Colour/Finish Single Colour

AluSpace

Transforming living spaces with AluSpace Internal Doors & Screens

Unmute Video

Mute Video

Play Video

Pause Video

Colour Options

The Aluco Collection is available in an extensive selection of colour and finish options

Sensations

Colours with excellent design qualities

5023 square sized to 100x100

5023

6021 square sized to 100x100

6021

6027 square sized to 100x100

6027

1003 square sized to 100x100

1003

7001 square sized to 100x100

7001

5013 square sized to 100x100

5013

2004 square sized to 100x100

2004

6019 square sized to 100x100

6019

4010 square sized to 100x100

4010

Jet black (9005m)

Jet Black (9005m)

Dark silver metallic (9007m)

Dark Silver Metallic (9007m)

Black grey (7021m)

Black Grey (7021m)

Anthracite grey (7016m)

Anthracite Grey (7016m)

Cotswold

The perfect colour palette for traditional projects and conservation areas

Cotswold stroud sky

Stroud Sky

Cotswold wetsonbrit leaf

Wetsonbirt Leaf

Cotswold chedworth green

Chedworth Green

Cotswold wottom olive

Wotton Olive

Cotswold tetbury field

Tetbury Field

Cotswold cotswold green

Cotswold Green

Cotswold moreton ground

Moreton Ground

Cotswold painswick grey

Painswick Grey

Cotswold chetlenham stone

Chetlenham Stone

Cotswold bourton cream

Bourton Cream

Cotswold slad stone

Slad Stone

Cotswold fairford tile

Fairford Tile

Cotswold bath stone

Bath Stone

Cotswold bibury stream

Bibury Stream

Cotswold burford white

Burford White

Naturals

Inspiring colours and finishes for contemporary architecture and restoration projects

Naturals black

Black

Naturals dark red

Dark Red

Naturals dark green

Dark Green

Naturals dark blue

Dark Blue

Naturals textured anthracite

Textured Anthracite

Naturals anthracite grey

Anthracite Grey

Naturals dark grey

Dark Grey

Naturals grey

Grey

Naturals dark brown

Dark Brown

Naturals dark brown

Brown

Naturals cream

Cream

Naturals off white

Off-White

Naturals gloss white

Gloss White

Naturals white

White

Smarts Architectural Aluminium

Smarts offer an extensive range of architectural aluminium colours and finishes.
Request your FREE Smarts Colours and Finishes Guide today by calling us on 01273 677545.

Want a bit more colour?

We also offer a colour matching service, so you are able to match our products to any RAL Colour.
This comes with a comprehensive 25 year Guarantee for your peace of mind.

HARDWARE

The Aluco Collection is available in an extensive selection of colour and finish options, including a stunning range of traditional and contemporary hardware and ironmongery styles and designs to compliment your home.

Door Handle

Black handles for aluspace title=

Black, Satin Chrome & Antique Brass finishes

Door Handle

Sliver handles for aluspace title=

Black, Satin Chrome & Antique Brass finishes

Escutcheons

Bathroom escutcheon aluspace title=

Black, Satin Chrome & Antique Brass finishes.

Sliding Door Handle

Sliding door handles for aluspace title=

Black, Satin Chrome, Antique Brass finishes
