OB-49

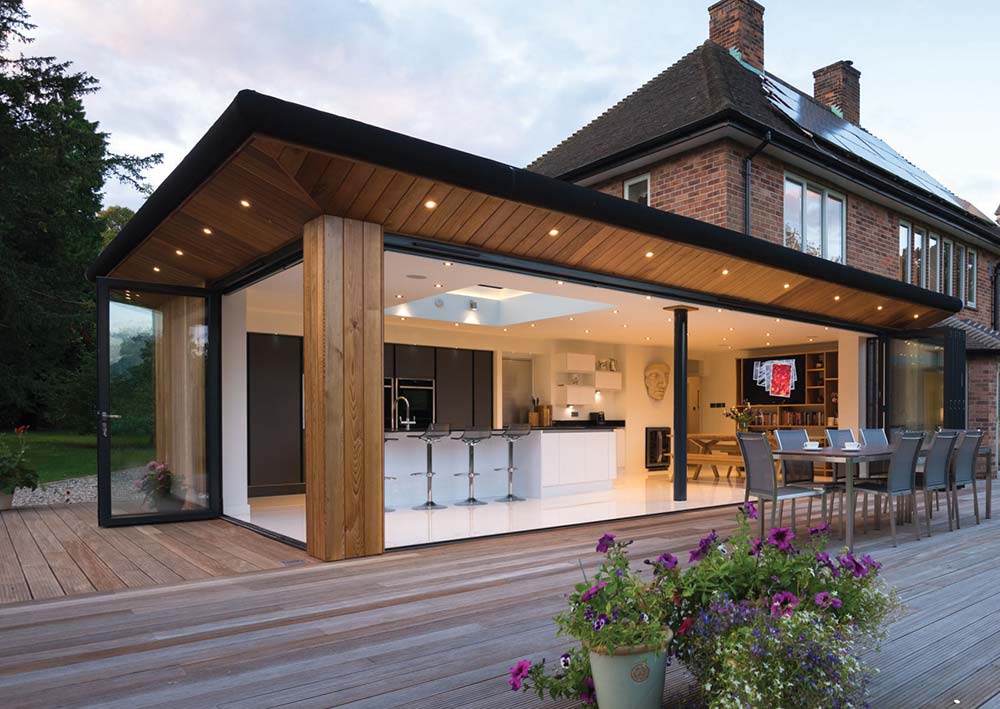

Designed and manufactured in Great Britain the OB-49 exceeds British Building Regulation requirements for optimum thermal efficiency. New for 2019 this slim line door has been re-engineered from the industry-renowned OB-72. With 49mm profile provides an unbeatable panoramic view of your surroundings.
The OB-49 designed just for you, a vast colour range with a variety of handles every order is completely bespoke. If a slim Bi-Fold is what matters to you, then the Origin OB-49 Bi-Fold door don’t disappoint.
Sightline
The OB-49 has a ultra slim 49mm sightline so you’ll have less compromise when it comes to views.
Lightweight
With less profile comes less weight meaning with the easy glide system you’ll be able to open and close them with ease.

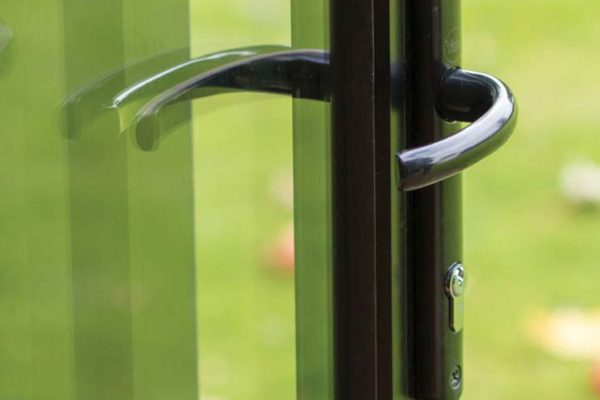

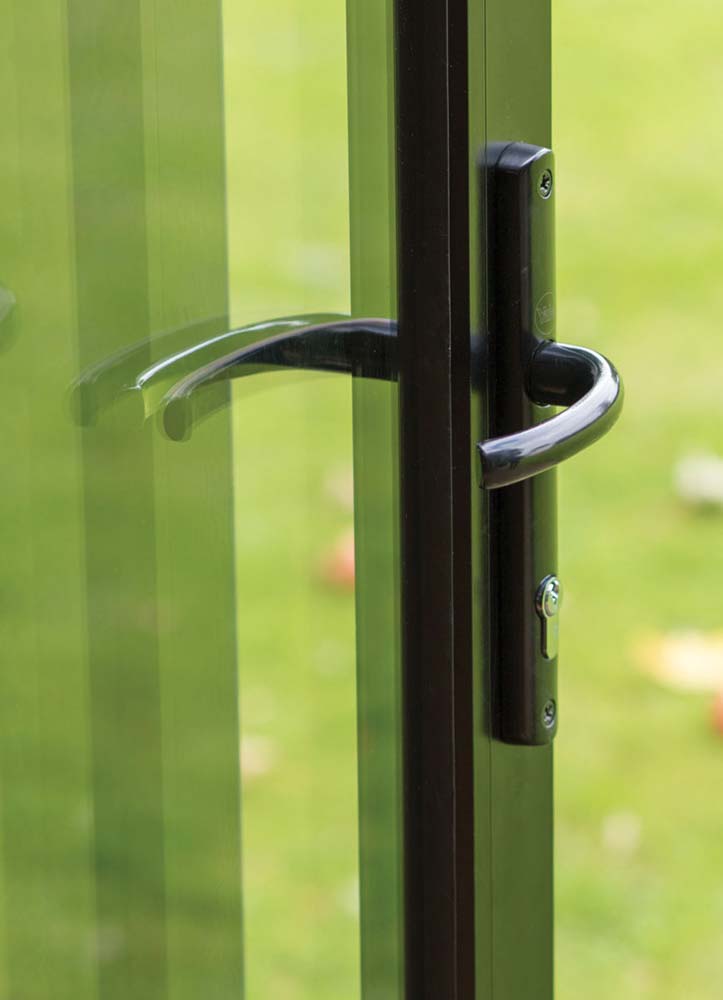

Handles
With a variety of handles to choose from you can completely make your door your own.
Durable powder coating
Whether you’re looking for a bright primary shade, a candy-coloured pastel or a deep, earthy tone, Origin’s extensive colour palette can’t fail to inspire you.
FEATURES & BENEFITS
Click an icon below to find out more
Up to a 20 year guarantee
Smooth free glide system
Finger safe gasket technology
No boundaries low threshold
Thermally efficient
Ultra slim lightweight aluminium frames
Advanced weather tight seals
Colour co-ordinated seals
Durable powder coating
Thermal Efficiency
With u-Values as low as 1.2, the Origin Door comprises of some of the most efficient weather-tight seals to ensure the elements stay out. The Thermal Transmittance is 1.2W/m2K also extensively tested by Origin Doors and Windows Product Compliance Director and team.
Security
Origin doors have a Secured by Design (SBD) status which is a police-preferred standard that focuses on the level of performance on accessible doors and windows for weather, security, operation and quality. As standard you will receive a 3-Star Diamond British Kite Mark Barrel lock.
Weather
Weathered and non- weathered options are available, so you can pick the right option for your needs. If you live by the beach, city centre or in the middle of the countryside there is a bespoke door for you.
Profile Specification
Profile Specification
Outer Frame Depth 75mm
Sash Depth 59mm
Hinge stile Glass to Glass Sightline 110mm
Track Height (not including rebate) 50mm
Weathered Threshold Height (including 18mm up stand) 67mm
Weathered Threshold Height Including Rebate 50mm
Non-Weathered Threshold Height 50mm
Size Limitations
Size Limitations
Minimum Sash Sizes (mm) W-325 H-400
Maximum Sash Sizes (mm) W-1200 H-2376
Minimum Set Sizes (mm) W-463 H-524
Maximum Set Sizes (mm) (with joining tracks) W-27600 H-2500
Maximum Set Sizes (mm) (without joining tracks) W-6000 H-2500
Weather Rating
Weather Rating
Air Permeability Class 4
Resistance to Wind Load Class A2
Water Tightness Class 9A
Exposure Category 1200pa (up to 2700mm tall) 800pa (2701mm - 3000mm tall)
Testing & Accreditation
Performance Testing
PAS24:2016
BS 6375 Parts 1, 2 & 3
Accreditation
ISO 9001
ISO 14001
2 Door Configuration
2 Door 2+0
2 Door French

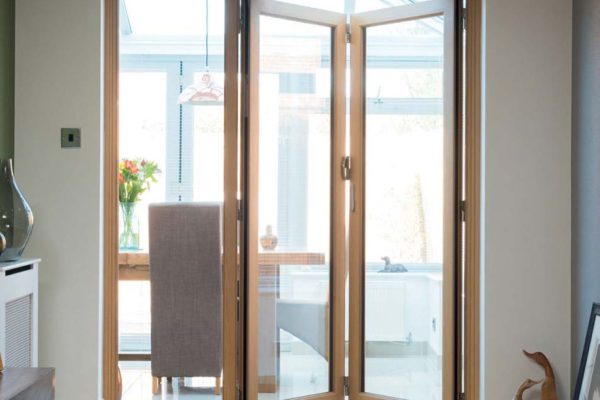

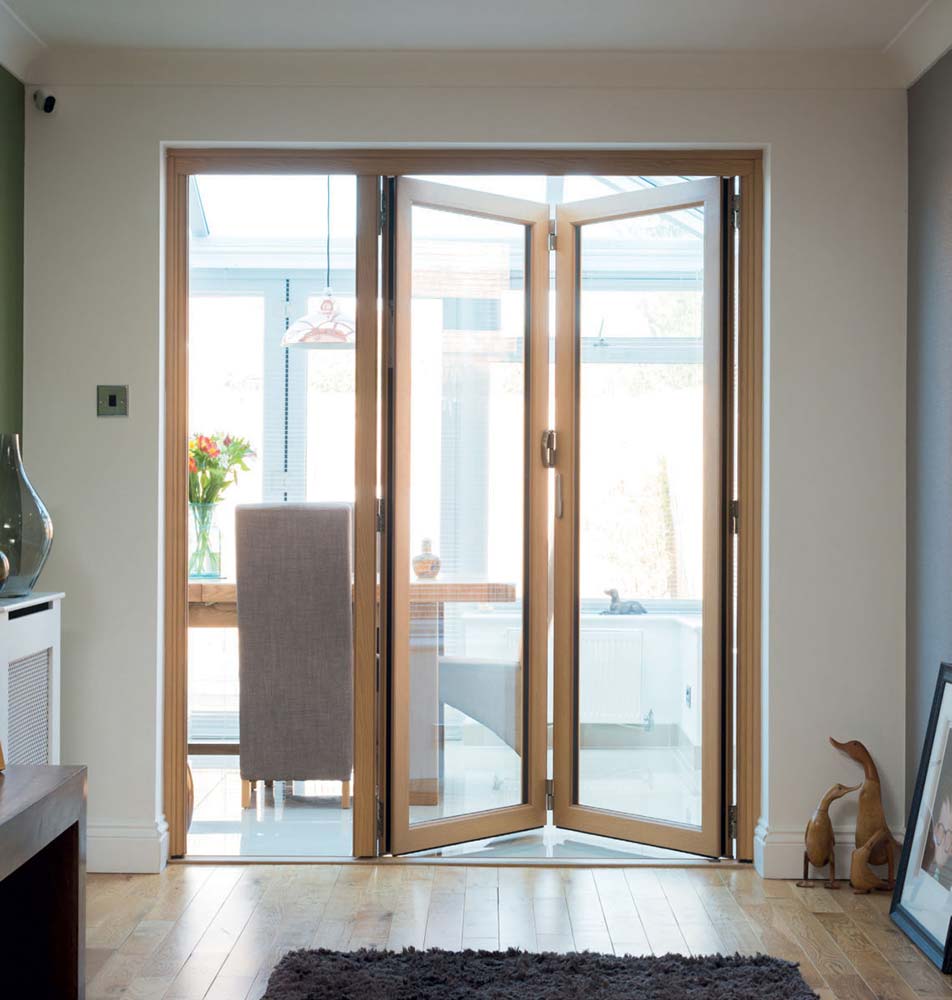

3 Door Configuration
3 door 3+0
3 Door 2+1
4 Door Configuration
4 Door 3+1
4 Door 4+0
4 Door 1+1
5 Door Configuration
5 Door 5+0
5 Door 4+1
5 Door 3+2
6 Door Configuration
6 Door 3+3
6 Door 6+0
6 Door 5+1
7 Door Configuration
7 Door 3+4
7 Door 7+0
7 Door 6+1
7 Door 2+5
Product Videos
Colour Options
With the Origin OB-49 Bi-Fold Door, you have the choice of over 150 RAL shades, and a range of dual-colour options.
Any RAL Colours with 4-Week lead time
5023
6021
6027
1003
7001
5013
2004
6019
4010
Jet Black (9005m)
Dark Silver Metallic (9007m)
Black Grey (7021m)
Anthracite Grey (7016m)
