VISOFOLD 6000 - ULTRA SLIM BI-FOLDING DOORS
Visofold 6000 offers elegant ultra slim sight-lines, coupled with highly engineered hardware designed to ensure years of reliable service. Visofold 6000 is the premier door in the Bi-Folding range. Designed around the same quality as Visofold 1000, but with slimmer profiles, providing larger glass areas resulting in a very attractive Bi-Folding door.
Visofold 6000’s flexibility makes it suitable for both commercial and residential projects where large opening apertures are required, with the system maximising light and space to give unimpeded views. This highly-versatile, easy-to-operate system is the perfect option for even the largest project, capable of opening up an entire wall, yet presenting a contemporary, elegant glazed façade when closed.
specification
Specification
BRAND VISOFOLD
DUAL COLOUR YES
THERMALLY BROKEN YES
MATERIAL ALUMINIUM POLYAMIDE
NBS AVAILABLE YES
performance
Performance
U VALUE 1.5W/M²K - 1.0 W/M²K
AIR CLASS 2, 450PA
WATER CLASS 8A, 450PA
WIND CLASS 3, 1200PA
DOCUMENT L COMPLIANT YES
BS 6375-1:2009 YES
GALLERY
The Visofold 6000 is the slimmest Bi-folding Door on the market, meeting stiles of just 94mm.
CONFIGURATIONS
3 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed
5 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed
Type 3
Type 3 Reversed
7 Pane
Type 1
Type 1 Reversed
Type 2
Type 2 Reversed
Type 3
Type 3 Reversed
Threshold Options
Standard Rebated Threshold
Outer Frame with Cill
Outer Frame no Cill

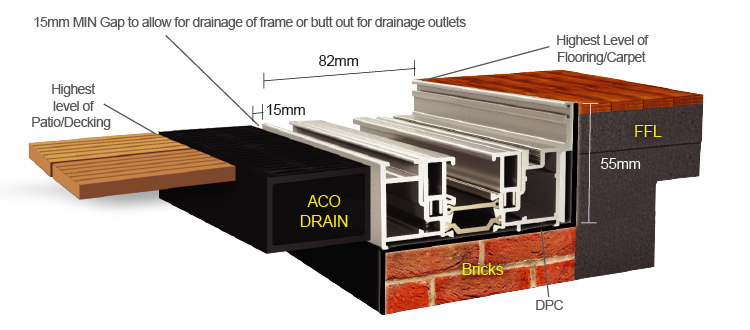

Outer Frame no cill with Aco Drain
Frame Specification
Head
Vertical

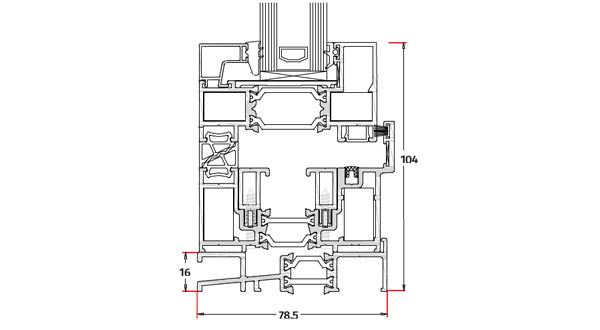

Outer Flush on Slim Cill
Key Features
Colour Matched Hinges
All hinges can be colour matched to any available door colour.
Magnetic Catches
Make for smooth sliding, easy operation
Stainless Steel Wheels
Stainless steel wheel assemblies run on a dual stainless steel track, ensuring graceful operation and stability
Various Handle Options
Available in a range of handles offering ultimate functionality and style
Double or Triple Glazing
Available Double and Triple Glazed for ultimate efficiency

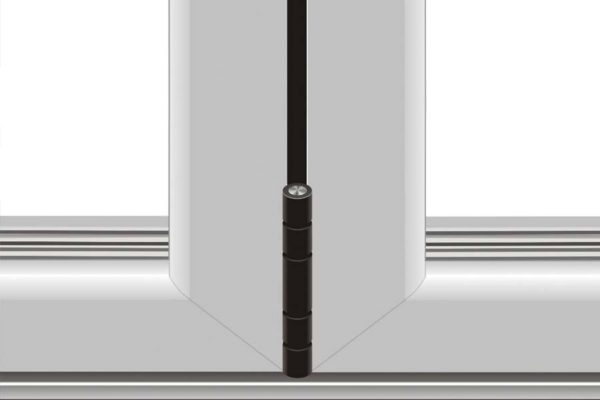

Ultra Slim Profiles
Ultra slim aluminium profiles, one of the slimmest bi-folding doors on the market, meeting stiles of just 94mm
Product Downloads
Slide & Slide Folding Doors
Data Sheet
VISOFOLD 6000 FEATURES THE SLIMMEST PROFILES CURRENTLY AVAILABLE IN THE SMARTS RANGE, PROVIDING ELEGANT SOLUTIONS FOR BOTH RESIDENTIAL AND COMMERCIAL APPLICATIONS.
Colour Options
Sensations
Colours with excellent design qualities
Ocean Blue
Antique Blue
Sky Blue
Steel Blue
Provence Green
Olive Green
Antique Green
Amazon Green
Obsidian Black
Vulcan Black
Antique Grey
Desert Grey
Platinum Grey
Diamond Grey
Silver Grey
Cocoa Brown
Sienna Brown
Chestnut Brown
Bronze Brown
Havana Brown
Basque Red
Mars Red
Antique Red
Caramel
Molten Copper
Antique Orange
Peach
Sand
Dune
Velour White
Frost White
Cotswold
The perfect colour palette for traditional projects and conservation areas
Stroud Sky
Wetsonbirt Leaf
Chedworth Green
Wotton Olive
Tetbury Field
Cotswold Green
Moreton Ground
Painswick Grey
Chetlenham Stone
Bourton Cream
Slad Stone
Fairford Tile
Bath Stone
Bibury Stream
Burford White
Naturals
Inspiring colours and finishes for contemporary architecture and restoration projects
Black
Dark Red
Dark Green
Dark Blue
Textured Anthracite
Anthracite Grey
Dark Grey
Grey
Dark Brown
Brown
Cream
Off-White
Gloss White
White
Smarts Architectural Aluminium
Smarts offer an extensive range of architectural aluminium colours and finishes.
Request your FREE Smarts Colours and Finishes Guide today by calling us on 01273 677545.
Want a bit more colour?
We also offer a colour matching service, so you are able to match our products to any RAL Colour.
This comes with a comprehensive 25 year Guarantee for your peace of mind.
Hardware Options
Flat / Round Handles
Shootbolt Handles
